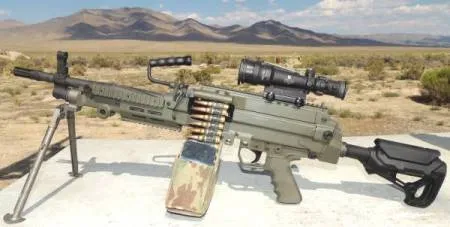

HDD MK48 A1® BELT FED MACHINE GUN,  7.62X51 NATO OR 6.5CM.

THE MK48 A1® BY HDD WAS DEVELOPED WITH A LONGER RECEIVER TO FIX MK48 RELIABILITY PROBLEMS. THESE USE THE SAME PARTS AS A STANDARD MK48 EXCEPT THE RECEIVER AND FEED COVER ARE SLIGHTLY LONGER AND THE BOLT AND SLIDE ARE BEEFED UP TO IMPROVE SERVICE LIFE AND RELIABILITY.

 THE STANDARD MK48 HAS A VERY SHORT BOLT LIFE AND A VERY SHORT RECEIVER LIFE. THE SHORT LIFE IS CAUSED BY CRAMMING A 7.62X51 ACTION INTO A 5.56X45 RECEIVER AND OPENING UP THE GAS PORT TO MAKE THE MOVING PARTS GO ALL THE WAY BACK EACH CYCLE. THIS IS WHY THE RECEIVER STRETCHES FROM THE SLAMMING AND THE BOLT FAILS WITH SUCH A SHORT SERVICE LIFE. THE STANDARD MK48 SLIDE ALSO HAS A SHORT SERVICE LIFE AS THE BOLT CAM STOP LEG BREAKS OFF. THE MK48 A1 HAS A SLIGHTLY LONGER RECEIVER WHICH CURES THESE PROBLEMS BY PROVIDING A LONGER ACTION TRAVEL AND HAS LESS FELT RECOIL SO GETTING MORE HITS ON TARGET IS EASIER. HDD DESIGNED BOLT HAS A THICKER REAR SHAFT DIAMETER AND HDD DESIGNED SLIDE WITH BEEFIER CAM STOP LEG FIXES THESE PARTS. THE HDD MK48 A1 BOLT AND SLIDE WILL FIT A STANDARD MK48 AND IS HIGHLY RECOMMENDED. BOLT AND SLIDE MUST BE USED TOGETHER OF COURSE AS THEY ARE MATCHING PARTS. THE LONGER ACTION TRAVEL ALLOWS THE BOLT TO LOCK FURTHER TO THE REAR WHICH GIVES A LONGER RUN UP BEFORE STRIPPING A ROUND FROM THE BELT, MUCH MORE RELIABLE STRIPPING AND FIRING OF THE OPEN BOLT DESIGN.

MULTI CALIBER RECEIVER WITH CONVERSION KITS TO 5.56 NATO, 300BLK, 7.62X51 AND 6.5 CM AVAILABLE.

THESE COME WITH A LIGHT BUT RUGGED B0LT ON PICATINNY RAIL HAND GUARD WITH MIL-STD 1913 RAILS AND M-LOK SLOTS.

BUTTSTOCK IS A HDD M4 TYPE STOCK WITH ADJUSTABLE CHEEK HEIGHT AND LENGTH OF PULL. A HYDRAULIC BUFFER SYSTEM IS USED FOR TAMING RECOIL AND BETTER USER CONTROL.

BARRELS ARE MIL-SPEC HAMMER FORGED STEEL, HARD CHROME LINED BORE & CHAMBER FOR LONGER LIFE, HAVE 5/8X24 MUZZLE THREADS FOR A WIDER RANGE OF MUZZLE DEVICES AND SUPPRESSORS. THESE HAVE 1in12 TWIST AND ARE FLUTED UNDER HAND GUARD FOR LIGHTER WEIGHT AND BETTER COOLING. BARRELS ARE QUICK CHANGE TYPE AND HAVE A FOLDING CARRY HANDLE ATTACHED. FEED COVER HAS A MIL-STD 1913 FULL LENGTH RAIL SUPERIOR FOR OPTICS USE AND A FLIP UP IRON REAR SIGHT FOR BACKUP.

HDD RECEIVERS ARE MADE FROM A STRONG HEAT TREATED STEEL AND ARE MULTI CALIBER COMPLIANT FOR EASY 10 MINUTE CALIBER CONVERSIONS. SLING MOUNTS ARE THE NEW QUICK DETACH TYPE, NOT THE OLD RATTLING HOOKS.

MK48 A1® RATE OF FIRE IN 7.62X51 NATO  CONFIGURATION IS 750RPM AND IS 730RPM WITH 5.56X45 NATO CONVERSION KIT.

THE HDD MK48 A1® USES A LIGHTWEIGHT TITANIUM BI-POD THAT FOLDS FORWARD AND BACK. ADJUSTS FOR HEIGHT AND UNEVEN GROUND ETC.

WEIGHT; STD-17.6 LBS.

OPERATION; OPEN BOLT.

BARREL LENGTH, 16.5".

OVERALL LENGTH, 38.5".

TRIGGER PULL; 6 LB.

FEED SYSTEM; NATO STD LINK BELT, DISINTEGRATING.

STOCK; HDD M4 TYPE, 6 POSITION ADJUSTABLE LENGTH OF PULL AND CHEEK HEIGHT.

100 RND SEMI RIGID LINKED CARTRIDGE FEED BOX AVAILABLE.

MK48 A1 NEW IN BOX.

MK48 A1 ASSAULTER

THE MK48 A1 ASSAULTER IS THE SAME AS A STANDARD MK48 A1 BUT WITH A SHORTER FRONT END AND 10.9" BARREL. COMES WITH 100RND SOFT MAG AND FORWARD GRIP. BIPOD IS LIGHTWEIGHT TITANIUM AND IS EASILY REMOVED OR INSTALLED AS NEEDED. THIS IS A VERY RELIABLE CQC WEAPON.

THESE CAN BE ORDERED BY NAYO FRIENDLY MILITARY UNITS/AGENTS, LAW ENFORCEMENT, FFL-SOT DEALERS WITH A "LAW LETTER".

'
