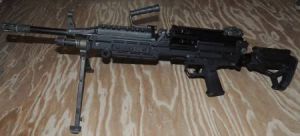

HDD MK48 BELT FED MACHINE GUN, 7.62

Product Code: LMG-762MIL

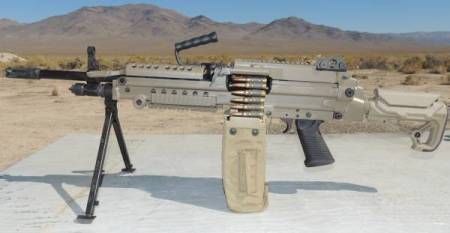

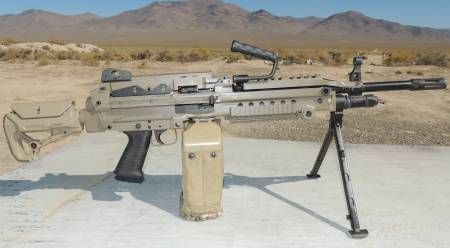

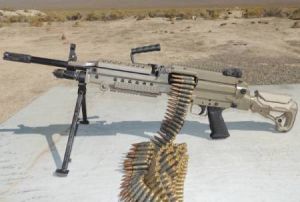

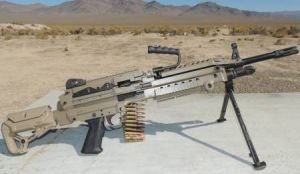

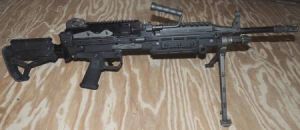

HDD MK48 BELT FED MACHINE GUN,  CHOICE OF 7.62X51 NATO OR 6.5 CREEDMOOR. LIGHT WEIGHT SQUAD AUTOMATIC WEAPON. MULTI CALIBER RECEIVER WITH CONVERSION KITS TO 5.56 NATO, 300BLK, 7.62X51 NATO AND 6.5 CREEDMOOR  AVAILABLE.

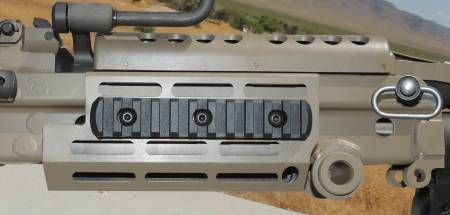

THESE COME WITH A LIGHT BUT RUGGED M-LOK RAIL HANDGUARD WITH 11 SLOT MIL-STD 1913 RAILS.

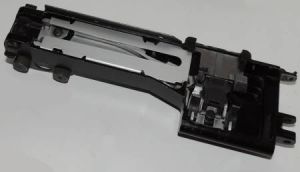

THE TRIGGER FRAME ASSEMBLY TAKES AR15/M16 GRIPS. GRIP CHOICE IS PLENTIFUL, COMES WITH M16A2 GRIP AND TOOL COMPARTMENT.

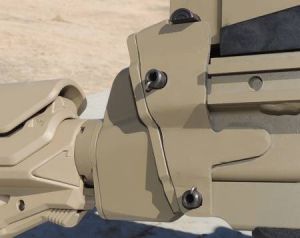

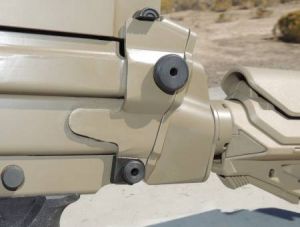

BUTTSTOCK CHOICE IS EITHER STANDARD MK48, HDD AR15 RIFLE OR HDD M4 CARBINE STOCKS. HDD STOCKS COME WITH A NEW 3 WAY HYDRAULIC BUFFER SYTEM, BEST DESIGN AVAILABLE FOR TAMING RECOIL AND CONTROLLABILITY.

BARRELS ARE COLD HAMMER FORGED STEEL, HARD CHROME LINED BORE & CHAMBER FOR LONGER LIFE, HAVE 5/8X24 MUZZLE THREADS FOR A WIDER RANGE OF MUZZLE DEVICES AND SUPPRESSORS. BARRELS CAN ALSO BE HARD MELONITE LINED IF PREFERRED. THESE HAVE 1in12 TWIST, ARE FLUTED UNDER THE HAND GUARD TO PROVIDE LIGHTER WEIGHT AND SUPERIOR COOLING FOR SUSTAINED FIRE. BARRELS ARE QUICK CHANGE TYPE AND HAVE A FOLDING CARRY HANDLE ATTACHED. PARA LENGTH BARREL IS 13.5"/343MM, STANDARD VERSION IS 16.5"/420MM, LONG VERSION IS 18.5"/470MM.

FEED COVER HAS A MIL-STD 1913 RAIL AT FRONT FOR OPTICS AND A LOWER 1913 RAIL AT REAR FOR QD SIGHTS. ALSO CAN BE DONE WITH A HDD ADJUSTABLE MK48 IRON REAR SIGHT THAT USES A M16A2 DOUBLE FLIP APERTURE WITH LARGE APERTURE FOR CLOSE QUARTERS COMBAT AND SMALL APERTURE FOR LONGER RANGE ENGAGEMENTS, SIGHT IS CALIBRATED IN METERS FROM 200-1200. TRITIUM® NIGHT SIGHTS ALSO OPTIONAL.

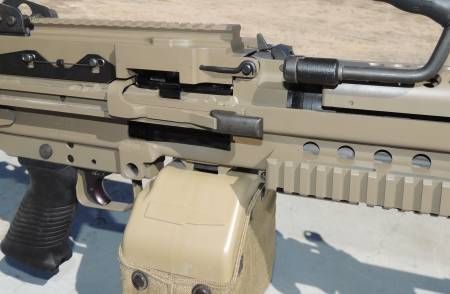

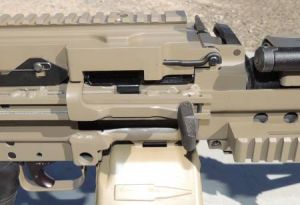

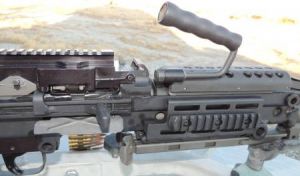

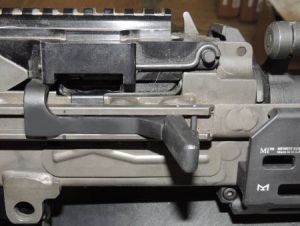

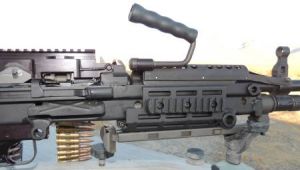

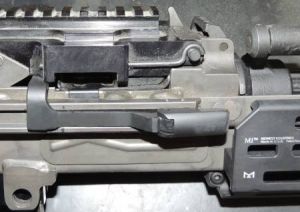

COCKING HANDLE IS A HDD MK48 PARA FOLDING HANDLE, MUCH BETTER FOR PARATROOPERS AND PERSONNEL TRAVELING IN CONFINED SPACES ETC.  GREAT DESIGN THAT FOLDS OR UNFOLDS VERY EASILY AND WILL FOLD AWAY AUTOMATICALLY WHEN WEAPON IS FIRED.

FRONT SIGHT FRAME IS 7075 T6 ALUMINUM AND USES M16/AR15 SIGHT POSTS, POST CHOICE IS PLENTIFUL INCLUDING THE TRITIUM® NIGHT SIGHT. OPERATORS CAN ADJUST THESE MUCH EASIER FOR ELEVATION OR WINDAGE, BETTER DESIGN. ELEVATION ADJUSTMENTS ARE MADE BY A M16 A2 SIGHT TOOL OR A 7.62 CARTRIDGE. WINDAGE IS ADJUSTED WITH A ALLEN WRENCH, QUICK AND EASY.

HDD RECEIVERS ARE MADE FROM A STRONG HEAT TREATED STEEL AND ARE MULTI CALIBER COMPLIANT FOR EASY 10 MINUTE CALIBER CONVERSIONS. SLING MOUNTS ARE THE NEW QUICK DETACH TYPE, NOT THE OLD RATTLING HOOKS. CALIBER CHOICES ARE 5.56 NATO, 300BLK, 7.62 NATO, 6.5 CREEDMOOR, 260 REMINGTON ETC. CONVERSION KITS FOR EACH CALIBER AVAILABLE.

RATE OF FIRE IN 7.62X51 NATO  CONFIGURATION IS ABOUT 750RPM.

THE HDD MK48 USES A SQUARE LEG BI-POD THAT NEATLY FOLDS AWAY INTO THE HAND GUARD RAIL ASSEMBLY. ADJUSTS FOR HEIGHT AND UNEVEN GROUND ETC.

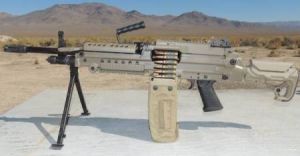

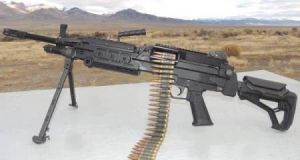

AVAILABLE IN STANDARD WITH 16.5"/420MM BARREL OR PARA WITH 13.5"/343MM BARREL AND COLLAPSIBLE STOCK. FINISH OPTIONS OF BLACK, FDE OR ODG.

WEIGHT; STD-17.6 LBS.

OPERATION; OPEN BOLT.

BARREL LENGTH, STD; 16.5"/ 19.75"OAL. PARA-13.5".

OVERALL LENGTH,STD; 39.5". PARA-34".

TRIGGER PULL; 6 LB.

FEED SYSTEM; NATO STD LINK BELT, DISINTEGRATING.

STOCK; STD FIXED OR COLLAPSIBLE PARA.

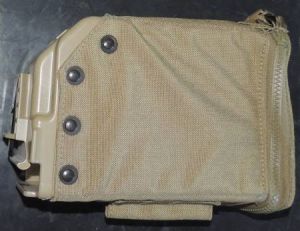

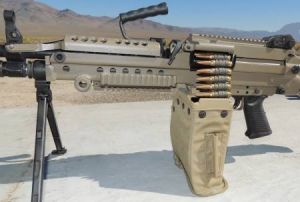

200 RND SEMI RIGID LINKED CARTRIDGE FEED BOX AVAILABLE.

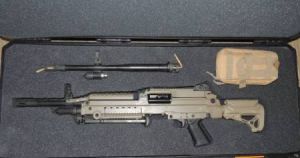

COMES IN PLASTIC CASE WITH 2 BARRELS, TOOLS AND CLEANING KIT.









EMAIL sales@hddtactical.com WITH QUANTITY REQUIRED FOR QUOTES AND LEAD TIME.

ALSO AVAILABLE TO FFL-SOT DEALERS WITH A LAW LETTER. CLICK HERE FOR DEALER PRICING

$0.00
